MILANO Modular Plates are smooth, curvy and screwless with a wide range of colours that match any decor, style and taste. The Screwless wall plates are easy to install and can be changed in seconds if a new colour is desired.

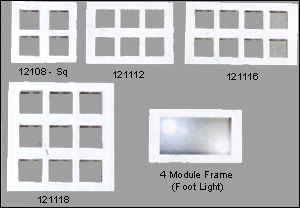

Modular Front Plates with Base Plates (Indian & BS Type)


Art No.
Modular Front Plates With Base Plates Packing Outer Plates Dim. in mm Inner Plates Hole Center
12101 1 Module 10 86 X 86 60.5
12102 2 Module 10 86 X 86 60.5
12103 3 Module 10 86 X 118 85.5
12103-S2 3 Module (Suitable for 2 Module Product) 10 86 X 118 120.5
12104-V 4 Module Verticle 10 146 X 86 120.5
12106 6 Module 10 86 X 220 195.0
12108-Hoz 8 Module Horizontal 10 86 X 250 160.0
12108-Sq 8 Module Square 10 155 X 146 195.0
12112 12 Module 5 155 X 216 195.0
12116 16 Module 5 155 X 260 195.0
12118 18 Module 5 224 X 216 195.0
  4 Module Frame (Foot light) 10 86 X 220 195.0

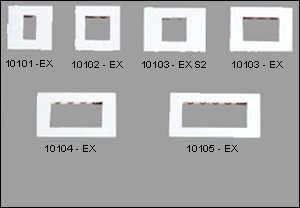

Modular Front Plates with Plates (Italian, European & French Plates)

Art No.
Modular Front Plates With Base Plates Packing Outer Plates Dim. in mm Inner Plates Hole Center
10101-Ex 1 Module 10 80 X 88 60.0
10102-Ex 2 Module 10 80 X 88 60.0
10103-Ex 3 Module 10 80 X 115 82.5
12103-Ex S2 3 Module (Suitable for 2 Module Product) 10 80 X 115 82.5
10104-Ex 4 Module Verticle 10 80 X 137 113.5
10105-Ex 5 Module 10 80 X 159 130.0
